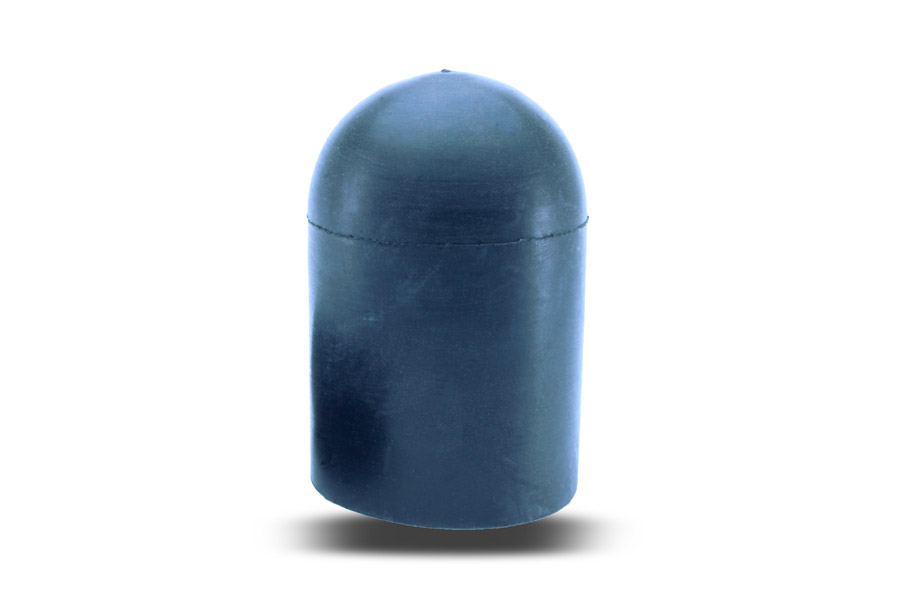

Caps for holes, pins and threads protection. Rounded head. EPDM made

EE Standard masking caps 177 °C

EPDM caps heat resistant up to 177 °C. Recommended for painting, plating, anodizing and blasting. Reusable and available in other materilas also.

Environmental sustainability Euromask®

Reusable
several times

Learn more

Buy on-line: up to 20% discount

Packages starting from

€ 17.71

+ VAT €15.58 €14.17

Name your price!

Free Sampling

Choose on our catalogue

Complete data sheet

colour	nero
hardness	60 SHORE A (+- 5) UNI 4916
breaking strenght	Mpa 12,0 UNI 6065
elongation strenght	% 450 UNI 6065
resistenza alla lacerazione	N/mm 30 UNI 4914 C
	Complete data sheet

Dimensions

3D drawing

Special sizes and shapes, other materials

We produce caps with special materials, shapes and sizes on demand in record times. Even without minimum quantity.Ask for

Presale support

More than 20 years field-experience at your complete service; contact our consultants without obligation.
Total disposability both by phone or e-mail for every request or technical advice, helping you in the choice of the best solution among our available products and materials. Contact us

Ask here for sampling

If you don't know the quality of Euromask®'s caps yet, ask for some samplings about the caps you need; it's really free and shipping is always included.

Ask for

Caps: Other shapes and materials on catalogue

Catalogue EE

For Purchase from this Country, please contact Commercial Office +39 02 9691001 or info@euromask-shop.com to have tailored offers - Change

Caps are sold in boxes. Each box can contain from 50 to 1000 caps. (Check Pcs Box table)
More boxes, more saving! With 10 or more boxes, for you Quantity Extra Discount!
Other materials? Size out-of-standard needed? Not sure of what you're buying? Ask for suggest.

Code	Thread	A	C	L	Pcs Box	€ 1 Box	Quantity Discount
EE20-500		0,51	3,55	12,7	1000	21.65	17.32
EE35-500		0,89	3,93	12,7	1000	22.25	17.80
EE40-500		1,02	4,06	12,7	1000	20.88	16.71
EE40-750		1,02	4,06	19,05	1000	25.85	20.68
EE62-750		1,57	4,61	19,05	1000	32.00	25.60
EE70-1000	M2	1,78	4,82	25,4	1000	32.28	25.83
EE80-750		2,03	5,07	19,05	1000	37.82	30.26
EE93-500		2,36	5,4	12,7	1000	32.71	26.16
EE93-750		2,36	5,4	19,05	1000	33.40	26.71
EE93-1000	M3	2,36	5,4	25,4	1000	39.38	31.50
EE100-500	M3	2,54	5,58	12,7	1000	33.49	26.80
EE100-1000	M3	2,54	5,58	25,4	1000	33.74	26.99
EE100-1500	M3	2,54	5,58	38,1	1000	57.48	45.98
EE109-500		2,77	5,81	12,7	1000	33.40	26.71
EE109-750		2,77	5,81	19,05	1000	36.05	28.84
EE125-500		3,18	6,22	12,7	1000	33.40	26.71
EE125-750		3,18	6,22	19,05	1000	35.66	28.53
EE125-1000		3,18	6,22	25,4	1000	37.57	30.06
EE125-1500		3,18	6,22	38,1	1000	64.04	51.23
EE137-1000		3,48	6,52	25,4	1000	50.22	40.18
EE140-500		3,56	6,6	12,7	1000	33.40	26.71
EE140-1000		3,56	6,6	25,4	1000	41.50	33.20
EE148-500	M4	3,76	6,8	12,7	1000	33.75	27.00
EE148-750	M4	3,76	6,8	19,05	1000	36.44	29.15
EE148-1000	M4	3,76	6,8	25,4	1000	43.11	34.49
EE148-1500	M4	3,76	6,8	38,1	1000	60.74	48.59
EE156-500		3,96	7	12,7	1000	37.57	30.06
EE156-1000		3,96	7	25,4	1000	44.73	35.79
EE165-1000		4,19	7,23	25,4	1000	52.22	41.78
EE172-500		4,37	7,41	12,7	1000	37.57	30.06
EE172-1000		4,37	7,41	25,4	1000	47.98	38.39
EE172-1500		4,37	7,41	38,1	1000	75.51	60.41
EE180-1000		4,57	7,61	25,4	1000	55.28	44.23
EE187-500	M5	4,75	7,79	12,7	1000	39.97	31.98
EE187-750	M5	4,75	7,79	19,05	1000	52.97	42.38
EE187-1000	M5	4,75	7,79	25,4	1000	51.15	40.92
EE187-1500	M5	4,75	7,79	38,1	1000	80.18	64.15
EE197-500		5	8,04	12,7	500	17.71	14.17
EE218-1000		5,54	8,58	25,4	500	32.12	25.69
EE223-500	M6	5,66	8,7	12,7	500	20.18	16.15
EE223-750	M6	5,66	8,7	19,05	500	30.57	24.46
EE223-1000	M6	5,66	8,7	25,4	500	29.50	23.60
EE223-1500	M6	5,66	8,7	38,1	500	45.97	36.78
EE234-500		5,94	8,98	12,7	500	20.39	16.32
EE234-787		5,94	8,98	19,99	500	28.37	22.69
EE234-1000		5,94	8,98	25,4	500	30.69	24.55
EE234-1500		5,94	8,98	38,1	500	55.75	44.60
EE250-500		6,35	9,39	12,7	500	25.28	20.22
EE250-1000		6,35	9,39	25,4	500	32.37	25.90
EE260-1000		6,6	9,64	25,4	500	37.35	29.89
EE281-1000		7,14	10,18	25,4	500	35.90	28.73
EE281-2000		7,14	10,18	50,8	500	83.55	66.84
EE295-500	M8	7,49	10,53	12,7	500	29.41	23.53
EE295-750	M8	7,49	10,53	19,05	500	38.95	31.15
EE295-1000	M8	7,49	10,53	25,4	500	37.29	29.83
EE295-1500	M8	7,49	10,53	38,1	500	67.83	54.26
EE-295-2350	M8	7,49	10,53	60	500	100.89	80.71
EE312-1000		7,92	10,96	25,4	500	39.27	31.42
EE312-1500		7,92	10,96	38,1	500	71.38	57.11
EE340-1000		8,64	11,68	25,4	500	42.50	34.01
EE355-1500		9,02	12,06	38,1	500	80.26	64.22
EE375-750	M10	9,52	12,57	19,05	500	48.90	39.12
EE375-1000	M10	9,52	12,57	25,4	500	46.81	37.44
EE375-1500	M10	9,52	12,57	38,1	500	84.46	67.56
EE375-1969	M10	9,52	12,57	50,01	500	106.55	85.24
EE406-1000		10,31	13,35	25,4	500	50.50	40.40
EE406-1500		10,31	13,35	38,1	500	90.88	72.70
EE437-1000		11,1	14,14	25,4	500	54.43	43.55
EE437-2000		11,1	14,14	50,8	500	106.94	85.55
EE456-500	M12	11,58	14,62	12,7	500	39.18	31.35
EE456-750	M12	11,58	14,62	19,05	500	51.26	41.01
EE456-1000	M12	11,58	14,62	25,4	500	56.64	45.31
EE456-1500	M12	11,58	14,62	38,1	500	87.25	69.81
EE456-1969	M12	11,58	14,62	50,01	500	109.76	87.80
EE468-1000		11,89	14,93	25,4	500	64.86	51.89
EE468-1500		11,89	14,93	38,1	500	89.50	71.61
EE480-1000		12,19	15,23	25,4	500	66.61	53.29
EE480-1500		12,19	15,23	38,1	500	91.77	73.42
EE500-750		12,7	15,74	19,05	500	56.37	45.09
EE500-1500		12,7	15,74	38,1	500	85.88	68.71
EE535-750		13,59	16,63	19,05	250	30.39	24.31
EE535-1500		13,59	16,63	38,1	250	45.98	36.78
EE535-3000		13,59	16,63	76,2	250	92.79	74.23
EE562-659		14,27	17,31	16,74	250	29.47	23.59
EE562-1500		14,27	17,31	38,1	250	48.38	38.70
EE600-1500	M16	15,24	18,28	38,1	250	51.78	41.43
EE625-1125		15,88	18,92	28,58	250	48.16	38.52
EE625-1250		15,88	18,92	31,75	250	52.18	41.74
EE625-1500		15,88	18,92	38,1	250	54.04	43.23
EE625-2500		15,88	18,92	63,5	250	92.11	73.69
EE687-1500		17,45	20,49	38,1	250	59.73	47.78
EE687-2500		17,45	20,49	63,5	250	101.36	81.09
EE730-1500		18,54	21,58	38,1	250	71.19	56.95
EE750-1500		19,05	22,09	38,1	250	65.76	52.60
EE750-2000		19,05	22,09	50,8	250	92.14	73.70
EE750-3500		19,05	22,09	88,9	250	148.86	119.08
EE780-1500		19,81	22,85	38,1	250	76.58	61.26
EE812-1500		20,62	23,66	38,1	250	71.81	57.44
EE845-2844		21,46	24,5	72,24	250	140.39	112.32
EE875-1000		22,22	25,26	25,4	250	65.35	52.28
EE875-1500		22,22	25,26	38,1	250	78.20	62.56
EE937-1500		23,8	26,84	38,1	250	84.53	67.62
EE970-1500		24,64	27,68	38,1	250	98.14	78.51
EE1000-1500		25,4	28,44	38,1	250	101.72	81.37
EE1000-2000		25,4	28,44	50,8	250	126.41	101.13
EE1062-1500		26,97	30,01	38,1	100	39.18	31.35
EE1062-2000		26,97	30,01	50,8	100	54.11	43.29
EE1125-1500		28,58	31,62	38,1	100	42.00	33.59
EE1187-1500		30,15	33,19	38,1	100	57.33	45.86
EE1250-1500		31,75	34,79	38,1	100	59.28	47.43
EE1350-1500		34,29	37,33	38,1	100	68.25	54.60
EE1380-1500		35,05	38,09	38,1	100	60.87	48.70
EE1500-1000		38,1	41,14	25,4	100	61.02	48.82
EE1500-1500		38,1	41,14	38,1	100	64.28	51.43
EE1500-1750		38,1	41,14	44,45	100	86.48	69.18
EE1625-2000		41,28	44,32	50,8	50	40.31	32.25
EE1750-2000		44,45	47,49	50,8	50	44.24	35.40
EE1875-2000		47,62	50,66	50,8	50	62.77	50.22
EE2000-2000		50,8	53,84	50,8	50	52.88	42.30
EE2105-2000		53,47	56,51	50,8	50	72.92	58.34

The discounted prices are indicated rounding to the nearest cent
