Plugs with handle for holes protection. Silicone made

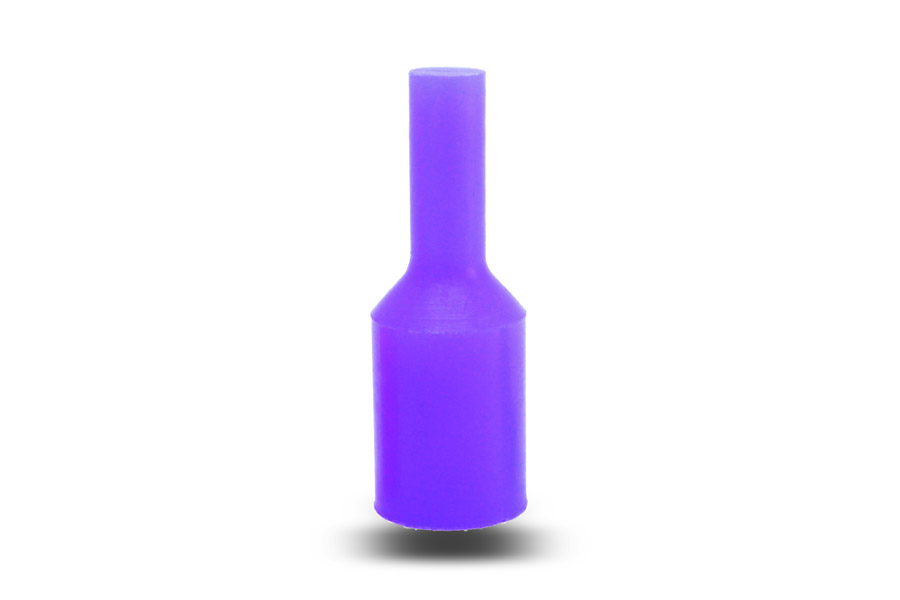

CPP Pull plugs 315°

Silicone plugs resistant up to 315 °C. Recommended for powder coating, E-coating, anodizing, plating and galvanic processes. Good for thru holes. Handle is useful for easier extraction. Reusable and available in other materilas also.

Environmental sustainability Euromask®

Reusable
several times

Learn more

Buy on-line: up to 20% discount

Packages starting from

€ 17.25

+ VAT €15.18 €13.80

Name your price!

Free Sampling

Choose on our catalogue

Complete data sheet

colour	extrusion trasparent - moulded white - transparent
hardness	60 SHORE A (+/- 4) DIN 53505
breaking strenght:	Mpa 12,0 / 12,0 DIN 53504
elongation strenght:	% 600 / 450 DIN 53504
deformation on elongatione	(22h/175°) (%) 20 / 40 DIN 53517
	Complete data sheet

Dimensions

3D drawing

Special sizes and shapes, other materials

We produce plugs with special materials, shapes and sizes on demand in record times. Even without minimum quantity.Ask for

Presale support

More than 20 years field-experience at your complete service; contact our consultants without obligation.
Total disposability both by phone or e-mail for every request or technical advice, helping you in the choice of the best solution among our available products and materials. Contact us

Ask here for sampling

If you don't know the quality of Euromask®'s plugs yet, ask for some samplings about the plugs you need; it's really free and shipping is always included.

Ask for

Plugs: Other shapes and materials on catalogue

Catalogue CPP

For Purchase from this Country, please contact Commercial Office +39 02 9691001 or info@euromask-shop.com to have tailored offers - Change

Plugs are sold in boxes. Each box can contain from 50 to 500 plugs. (Check Pcs Box table)
Other materials? Size out-of-standard needed? Not sure of what you're buying? Ask for suggest.

Code	Holes	A	B	C	D	Pcs Box	€ 1 Box
CPP06		1,57	1,02	12,7	12,7	500	17.25
CPP07		1,7	1,19	15,88	15,49	500	18.35
CPP08		1,85	1,17	15,54	14,99	500	21.69
CPP09		2,31	1,32	15,88	15,88	500	22.22
CPP10(2)		2,36	1,27	15,88	15,88	500	24.42
CPP95-1000		2,41	1,32	25,4	25,4	500	31.79
CPP10(A)		2,67	2,08	25,4	25,4	500	27.28
CPP11		2,77	1,57	25,4	25,4	500	28.60
CPP11B		3	2,08	25,4	25,4	500	39.44
CPP11A(3)	3F	3,18	1,57	15,88	15,88	500	39.88
CPP15	3L / 3F	3,3	2,36	15,88	17,78	500	40.75
CPP14	3L / 3F	3,3	2,36	25,4	25,4	500	35.36
CPP17	3L	3,56	2,16	15,88	14,17	500	35.14
CPP18		3,91	1,57	15,88	15,88	500	34.78
CPP20(4A)	4F	3,96	1,57	15,88	19,05	500	37.53
CPP21	4F	4,01	2,08	31,75	31,75	500	39.14
CPP22	4L / 4F	4,11	2,44	15,88	14,76	500	42.40
CPP23(4)	5F	4,95	2,79	25,4	25,4	500	50.55
CPP26	5F	5	2,79	25,4	25,4	500	57.36
CPP30	5L / 6F	5,54	3,3	25,4	25,4	500	72.88
CPP33	5L / 6F	5,72	3,18	25,4	25,4	500	75.86
CPP37(5)	6L	6,53	3,3	25,4	25,4	500	83.55
CPP40	6L / 8F	6,99	3,18	23,8	23,37	500	86.88
CPP42(6)	8F	7,92	3,73	25,4	25,4	500	94.12
CPP42	8L	8,43	6,35	28,58	20,29	500	109.52
CPP43	8L	8,51	3,89	25,4	25,4	500	130.84
CPP355-1000		9,02	3,99	25,4	25,4	500	165.04
CPP50	10F	9,53	3,99	25,4	25,4	500	131.94
CPP55	10F	9,75	3,91	25,4	25,4	250	69.61
CPP55(7)	10F	9,86	3,99	25,4	25,4	250	110.87
CPP60	10L / 12F	10,36	4,85	25,63	25,4	250	127.44
CPP63	12F	10,52	3,99	13,34	19,18	250	127.71
CPP66	12F	11,28	6,48	25,4	25,15	250	127.88
CPP67	12F	11,3	6,48	25,4	25,4	250	131.86
CPP70		11,89	6,35	25,4	25,4	250	133.62
CPP73	12L / 14F	12,6	6,35	25,4	25,4	250	134.61
CPP77		12,95	6,5	25,4	24,28	250	138.47
CPP80		13,46	6,35	25,4	25,4	250	148.94
CPP570-1000		14,48	7,92	25,4	25,4	100	91.23
CPP87		15,54	6,35	25,4	25,4	100	96.17
CPP88		15,75	8,36	38,1	38,1	100	156.30
CPP90		16,26	9,53	25,4	25,4	100	86.22
CPP95	16L	17,78	9,53	31,75	31,75	100	127.10
CPP100		19,56	9,53	25,4	23,55	100	128.31
CPP809-1000		20,55	8	25,4	25,4	50	84.60
CPP110(13)		22,76	9,53	25,4	25,4	50	61.44
CPP120		25,91	9,53	25,4	24,64	50	92.26
CPP130		35,05	12,7	25,4	25,4	50	258.43

The discounted prices are indicated rounding to the nearest cent
