EP Korki do 315 ºC

Odpowiednie do malowania proszkowego i elektrostatycznego przez zanurzanie w plynie oraz platynowania. Wielokrotnego uzytku.

Environmental sustainability Euromask®

Reusable
several times
and with Ø different

Learn more

Buy on-line: up to 20% discount

Packages starting from

€ 5,27

+ VAT €4,64 €4,22

Name your price!

Free Sampling

Choose on our catalogue

Complete data sheet

colour	extrusion trasparent - moulded white - transparent
hardness	60 SHORE A (+/- 4) DIN 53505
breaking strenght:	Mpa 12,0 / 12,0 DIN 53504
elongation strenght:	% 600 / 450 DIN 53504
deformation on elongatione	(22h/175°) (%) 20 / 40 DIN 53517
	Complete data sheet

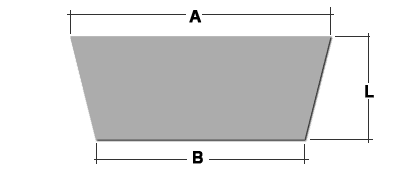

Dimensions

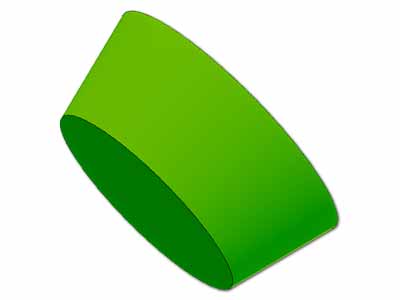

3D drawing

Special sizes and shapes, other materials

We produce plugs with special materials, shapes and sizes on demand in record times. Even without minimum quantity.Ask for

Presale support

More than 20 years field-experience at your complete service; contact our consultants without obligation.
Total disposability both by phone or e-mail for every request or technical advice, helping you in the choice of the best solution among our available products and materials. Contact us

Ask here for sampling

If you don't know the quality of Euromask®'s plugs yet, ask for some samplings about the plugs you need; it's really free and shipping is always included.

Ask for

Korki: Other shapes and materials on catalogue

Catalogue EP

For Purchase from this Country, please contact Commercial Office +39 02 9691001 or info@euromask-shop.com to have tailored offers - Change

Plugs are sold in boxes. Each box can contain from 1 to 1000 plugs. (Check Pcs Box table)
More boxes, more saving! With 5 or more boxes, for you Quantity Extra Discount!
Other materials? Size out-of-standard needed? Not sure of what you're buying? Ask for suggest.

Code	Color	Holes	A	B	L	Pcs Box	€ 1 Box	Quantity Discount
EP63	light blue	1	1,6	0,41	15,88	1000	36,85	29,48
EP78	yellow	1	1,98	0,51	19,05	1000	41,25	33,00
EP81	clear	1-2	2,54	0,81	15,88	1000	46,04	36,83
EP99	white	1-3	3,18	0,79	15,88	1000	51,54	41,23
EP100	green	2-3	3,18	1,6	15,88	1000	52,03	41,62
EP101SH	purple	2-4	4,75	2,79	10,01	1000	51,09	40,88
EP101	pink	2-4	4,75	1,6	15,88	1000	54,55	43,64
EP101XL	light blue	2-4	4,75	1,6	19,05	1000	66,66	53,33
EP101SXL	yellow	2-4	4,75	1,6	25,4	1000	77,19	61,74
EP102	grey	4-6	6,35	3,18	19,05	1000	84,81	67,85
EP102XL	light green	4-6	6,35	3,18	25,4	1000	89,74	71,79
EP103	red	6-8	8,71	4,78	15,88	1000	111,59	89,28
EP103XL	pink	6-8	8,71	4,78	25,4	1000	142,06	113,65
EP105	green	7-9	9,52	6,35	12,7	100	22,31	17,84
EP104	yellow	7-9	9,52	6,35	19,05	100	19,67	15,73
EP375XL	light blue	5-8	9,52	3,18	31,75	100	60,83	48,66
EP394XL	light green	6-9	10,01	5	48,01	100	69,96	55,97
EP104XL	grey	7-9	11,1	6,35	25,4	100	25,10	20,09
EP106	red	9-10	11,13	8,74	17,48	100	30,83	24,66
EP000	white	9-10	11,91	8,74	20,65	100	27,13	21,70
EP000XL	green	9-11	12,7	7,9	25,4	100	34,05	27,24
EP500XL	pink	5-11	12,7	3,2	50,8	100	72,16	57,73
EP107	light blue	9-13	14,3	7,95	25,4	100	36,29	29,03
EP107XL	clear	4-13	15,01	3,00	35,00	100	64,13	51,30
EP00	grey	11-14	15,09	10,31	25,4	100	36,78	29,43
EP108	light green	12-14	15,88	11,13	22,22	100	55,88	44,70
EP0	red	14-16	16,66	12,7	25,4	100	52,50	42,00
EP109	clear	12-16	17,45	11,13	25,4	100	55,13	44,11
EP1	yellow	16-18	19	14,27	25,4	100	56,55	45,24
EP2	white	17-19	19,99	15,88	25,4	100	74,20	59,36
EP2,5	green	17-20	20,62	15,88	25,4	100	83,07	66,46
EP3	pink	19-22	23,83	18,26	25,4	100	91,94	73,55
EP3,5	clear	18-23	25	17	25,4	100	97,48	77,99
EP4	light blue	21-24	25,4	19,84	25,4	100	105,30	84,24
EP4,5	grey	22-25	26,01	19,99	25,4	100	112,41	89,92
EP5	light green	24-26	27	23,01	25,4	100	119,52	95,61
EP5,5	red	25-27	27,94	23,83	25,4	100	148,83	119,06
EP6	yellow	27-30	31,75	26,19	25,4	100	151,83	121,46
EP6,5	white	28-33	33,35	27	25,4	100	163,10	130,48
EP7	green	31-35	36,53	30,18	25,4	10	23,09	18,47
EP7,5	pink	32-38	38,89	31,75	25,4	10	25,29	20,23
EP8	light blue	34-40	41,28	33,35	25,4	10	25,57	20,46
EP8,5	grey	37-42	42,88	35,71	25,4	10	26,13	20,90
EP9	light green	38-43	44,45	37,31	25,4	10	26,68	21,34
EP9,5	red	39-45	46,05	38,1	25,4	10	39,59	31,67
EP10	yellow	42-49	50,01	41,28	25,4	10	40,69	32,55
EP10,5	white	45-52	52,4	44,45	25,4	10	43,99	35,19
EP11	green	49-55	55,96	47,62	25,4	1	5,27	4,21
EP11,5	pink	51-62	62,71	50,01	25,4	1	7,21	5,76
EP12	light blue	55-63	63,5	53,98	25,4	1	7,42	5,94
EP13	grey	58-67	68,28	57,94	25,4	1	9,56	7,65
EP13,5	light green	63-74	75,01	61,93	34,92	1	14,29	11,43
EP13,78	clear	72-80	68	82	35	1	15,39	12,31
EP14	red	77-88	88,9	76,2	38,1	1	16,49	13,19
EP15	yellow	83-100	101,6	82,55	38,1	1	29,04	23,23
EP16	white	90-126	127	88,9	50,8	1	47,37	37,90

The discounted prices are indicated rounding to the nearest cent
